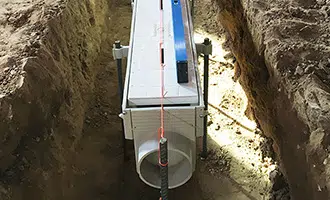

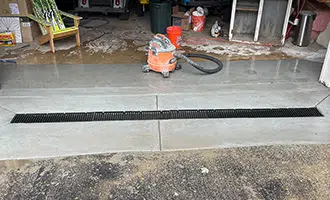

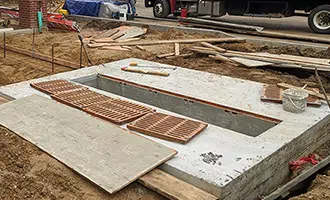

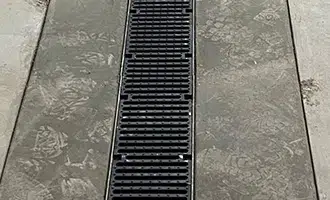

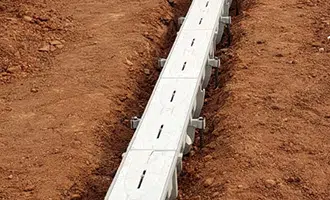

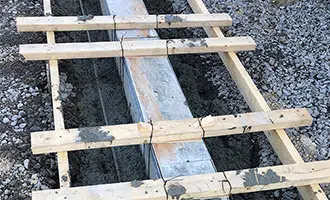

# Determining Trench Drain Size Using Manning's Formula for Flow Rates

Trench drains play a crucial role in effectively managing stormwater runoff, preventing flooding, and maintaining safe and functional infrastructure. One essential aspect of designing a trench drain system is determining the appropriate drain size to ensure efficient water flow. Manning's equation, widely used in hydraulic engineering, provides a reliable method for estimating flow rates in open channels. In this article, we will explore Manning's equation formula and discuss how to apply it to determine the proper trench drain size for optimal performance.

## Understanding Manning's Equation: A Key Tool for Open Channel Flow Analysis

In the field of hydraulic engineering, the analysis and design of open channels play a crucial role in various applications such as irrigation systems, stormwater management, and river channel design. One fundamental equation that engineers often rely on for these calculations is Manning's equation. Developed by the Irish engineer Robert Manning in 1889, Manning's equation provides a practical and widely used method for estimating the flow velocity and discharge in open channels. This article aims to provide an in-depth explanation of Manning's equation, its significance, and its applications in open channel flow analysis.

Manning's Equation: Manning's equation relates the flow velocity, cross-sectional area, hydraulic radius, and channel slope in an open channel. It is expressed as:

Q = (1.486/n) * A * R^(2/3) * S^(1/2)

where:

• Q is the flow rate (discharge) in cubic meters per second (m³/s)
• n is Manning's roughness coefficient (a dimensionless parameter representing the roughness of the channel)
• A is the cross-sectional area of flow in square meters (m²)
• R is the hydraulic radius in meters (m), which is the ratio of the cross-sectional area to the wetted perimeter (P)
• S is the channel slope (dimensionless), defined as the change in elevation divided by the channel length

### Understanding the Components:

1. Flow Rate (Q): The flow rate represents the volume of water passing through the channel per unit of time. Manning's equation calculates the flow rate based on the other parameters involved.
2. Manning's Roughness Coefficient (n): The Manning's roughness coefficient represents the resistance to flow caused by the roughness of the channel boundary. It takes into account factors such as the channel material, vegetation, and obstructions. Engineers use established tables or empirical formulas to determine appropriate values for n based on the channel type.
3. Cross-Sectional Area (A): The cross-sectional area refers to the area of the flow section perpendicular to the direction of flow. It is determined by the geometry of the channel, such as its width and depth.
4. Hydraulic Radius (R): The hydraulic radius is a measure of the efficiency of a channel in carrying water. It is the ratio of the cross-sectional area to the wetted perimeter (P), which is the length of the channel boundary in contact with water. A larger hydraulic radius indicates a more efficient flow.
5. Channel Slope (S): The channel slope represents the change in elevation per unit of channel length. It provides the driving force for water flow in the channel. The slope can be determined by measuring the elevation difference between two points along the channel and dividing it by the distance between those points.

### Applications of Manning's Equation: Manning's equation is widely used in various applications related to open channel flow analysis. Some of its key applications include:

1. Hydraulic Design: Engineers employ Manning's equation to design and size open channels for a desired flow rate. By considering the channel geometry, roughness, and slope, they can determine the required dimensions of the channel to meet specific hydraulic criteria.
2. Flood Modeling and Forecasting: In flood management, Manning's equation plays a critical role in predicting water levels and velocities in rivers and channels. By applying the equation to different sections of the river network, engineers can assess potential flood risks, plan evacuation routes, and design protective structures.
3. Stormwater Management: Manning's equation assists in analyzing the capacity of stormwater drainage systems and designing appropriate channels to handle the anticipated runoff. By using the equation in conjunction with rainfall data, engineers can estimate the flow rates and determine the required dimensions for stormwater channels.
4. River and Stream Restoration: In river restoration projects, Manning's equation aids in analyzing the existing conditions and designing modifications to enhance the natural flow characteristics. By using the equation to model different scenarios, engineers can assess the potential impacts of changes in channel geometry and roughness.

Manning's equation remains a fundamental tool for engineers dealing with open channel flow analysis. Its simplicity and applicability have made it a widely adopted method for estimating flow velocities, discharge rates, and other hydraulic parameters in open channels. By understanding the components of Manning's equation and its applications, engineers can make informed decisions when designing and managing open channel systems, thereby contributing to efficient and effective water resource management.

### Understanding Manning's Equation as it Relates to Trench Drains

Manning's equation is an empirical formula that relates the flow rate in an open channel to the hydraulic radius, slope, and roughness coefficient. It is expressed as follows:

Q = (1/n) * A * R^(2/3) * S^(1/2)

Where: Q = Flow rate in the channel (cubic units per unit of time) n = Manning's roughness coefficient (dimensionless) A = Cross-sectional area of flow (square units) R = Hydraulic radius (A/P, where P is the wetted perimeter) (linear units) S = Channel slope (dimensionless)

Determining the Proper Trench Drain Size: To determine the proper trench drain size using Manning's equation, we need to follow a step-by-step process outlined below:

Step 1: Define the project requirements: Start by clearly defining the project requirements, including the area to be drained, the anticipated peak flow rate, and any applicable regulations or standards.

Step 2: Collect necessary data: Gather the relevant data, such as topographic surveys, rainfall intensity data, and any other site-specific information required for the analysis.

Step 3: Estimate design flow rate: Estimate the design flow rate based on local regulations, expected rainfall intensity, and the area to be drained. This flow rate will serve as a starting point for the trench drain sizing calculations.

Step 4: Determine Manning's roughness coefficient: Select an appropriate Manning's roughness coefficient (n) that represents the anticipated surface conditions and material of the trench drain. This coefficient varies depending on the type of material used for the trench, such as concrete, plastic, or metal. Consulting published reference materials or engineering guidelines can help in obtaining suitable values for different materials.

Step 5: Calculate hydraulic radius and slope: Based on the design flow rate, determine the hydraulic radius (R) and channel slope (S) for the trench drain. The hydraulic radius is calculated as the cross-sectional area divided by the wetted perimeter, and the slope is determined by the site's topography and drainage requirements.

Step 6: Rearrange Manning's equation for trench drain sizing: Rearrange Manning's equation to solve for the cross-sectional area (A) of the trench drain:

A = (Q * n) / (R^(2/3) * S^(1/2))

Step 7: Select trench drain dimensions: Using the calculated cross-sectional area (A), select appropriate trench drain dimensions that satisfy both hydraulic performance and structural requirements. Consider factors such as available space, flow velocity limits, and compatibility with other system components.

Step 8: Evaluate the selected trench drain size: With the selected trench drain size, re-evaluate the flow rate using Manning's equation to confirm that the drain can handle the anticipated peak flow without causing excessive flow velocities or overflow.

Step 9: Consider maintenance and debris handling: In real-world applications, it is important to consider maintenance and debris handling. Ensure the trench drain's size and design allow for efficient cleaning and removal of debris to prevent clogging and maintain its performance over time.

### In Conclusion

Determining the proper trench drain size using Manning's equation provides a systematic approach to ensure efficient and effective stormwater management. By considering flow rates, Manning's roughness coefficient, hydraulic radius, and slope, engineers can calculate the appropriate cross-sectional area for the trench drain. This approach allows for the selection of the optimal trench drain dimensions, taking into account hydraulic performance, site constraints, and maintenance requirements. However, it is essential to remember that local regulations and site-specific factors may also influence trench drain design, so consulting with experienced professionals and relevant guidelines is advisable for accurate results.
